WDL - PRODUCT SPECIFICATIONS & LITERATURE

The WDL Series is an energy efficient linear LED fixture designed specifically for heavy hosedown applications. A proprietary two point closure system comprised of heavy duty stainless steel end caps and custom molded gaskets assure a positive seal. The component base design allows for quick and easy maintenance. The IP69K rated enclosure utilizes a robust .125” thick chemical and impact resistant FROSTED lens which provides a GLARE FREE wide distribution light pattern similar to fluorescent products. ETL listed UL 1598 WET LOCATIONS and Battery Back-Up, CSA Std. C22.2 No. 250.0, NSF 2 for Splash-Zones and IP69K, the WDL Series is designed to hold up to daily sanitation while meeting all USDA requirements.

  • PDF FILES

    Colored Diffuser Specifications
    Warranty
    Specifications

  • PHOTOMETRIC FILES

    W4-H45-85-U-XX Summary
    W4-H65-90-U-XX Summary
    W4-M45-85-U-XX Summary
    W8-H45-85-U-XX Summary
    W8-H65-90-U-XX Summary
    W8-M45-85-U-XX Summary

  • IES FILES

    W4-H45-85-U-XX
    W4-H65-90-U-XX
    W4-M45-85-U-XX
    W8-H45-85-U-XX
    W8-H65-90-U-XX
    W8-M45-85-U-XX

PRODUCT FEATURES

WDL SERIES
Linear LED Design for Uniform Lighting
Wide Distribution Light Pattern
Small 4.5” Profile, Smooth Water-Shed Design
Robust .125” Thick, Chemical and Impact Resistant Frosted Lens
Custom Molded Sealing Gaskets with Stainless Steel End Caps
Two Point Closure System for Positive Seal
Standard 6’ lead included or optional 3 wire mini-receptacle
Component Based Design for Easy Maintenance
Universal Voltage Driver (120V – 277V)
4500 CCT, >85 CRI, Conformal Coated LED’s
50,000+ Hours Rated LED Life
Flexible Mounting Options
Available in 4’ and 8’ Models
ETL Listed UL 1598 for Wet Locations
ETL Listed UL 1598 for Battery Back-Up
ETL Listed for CSA Std. C22.2 No. 250.0
ETL Listed for ANSI/NSF 2 for Splash Zones
IP69K

FIXTURE CONFIGURATOR

Use part number configurator to build your model

Consult factory for all available options and configurations.
Not all configurations of this fixture may be DLC qualified. Please consult the DLC Qualified Products list @ www.designlights.org to see if the version in which you are interested, is listed.

Series
W = WDL
 Length
4 = 4'
8 = 8'
 Lumen Output
M = Medium
H = High
 CCT and CRI
45-85 = 4500K, 85 CRI
65-90 = 6500K, 90 CRI
 Voltage
U=(120V-277V)
UNB=(120V-277V) Non-Switching Battery Back-Up
USB=(120V-277V) Switching Battery Back-Up
 Optional Power End
(Blank) = Standard 6' Yellow Lead, 3-wire, SS Potted Cord Grip Included
R3 = Mini-Receptacle, 3-wire, Male
R4 = Mini-Receptacle, 4-wire, Male
4P6 = 6' Yellow Lead, 4-wire, Potted Cord Grip
 Optional Controls
(Blank) = No Controls
MS = Wet Location Motion Sensor
MSD = Dry Location Motion Sensor
 Optional diffusers
(Blank) = No Diffusers

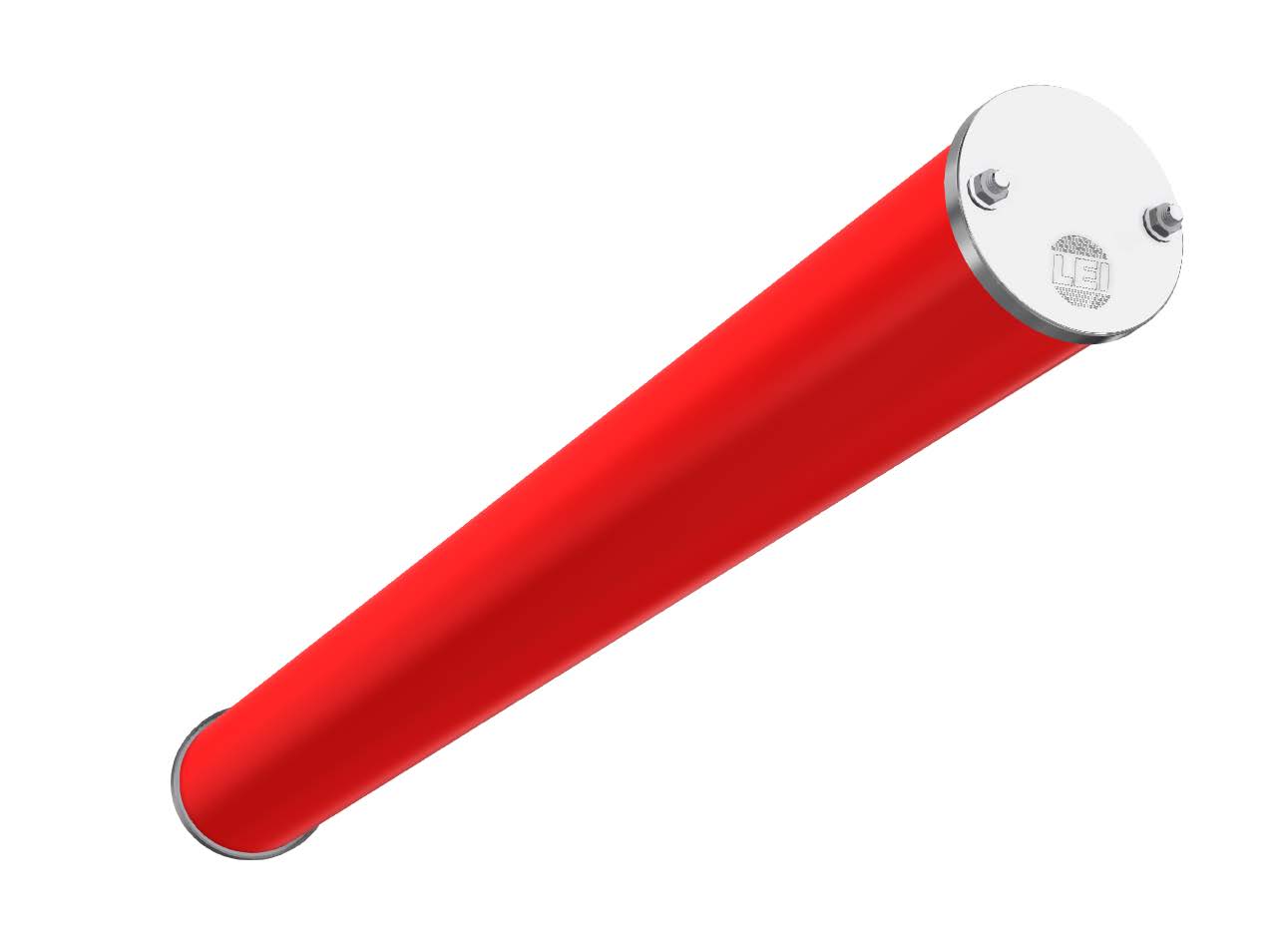

BF = Blue Lens Diffuser
RF = Red Lens Diffuser
