EL - PRODUCT SPECIFICATIONS & LITERATURE

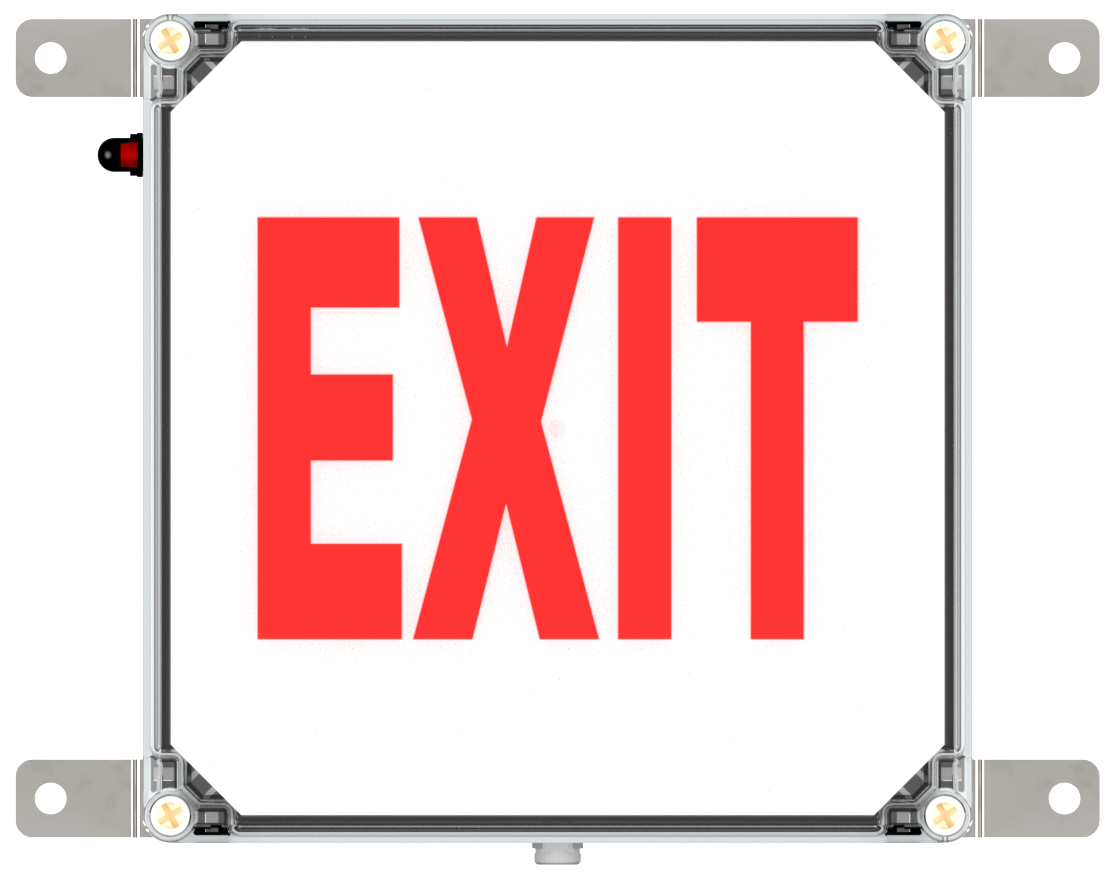

The EL Series exit sign is designed for heavy hose-down and wet location environments. The unique design can satisfy both exit and emergency lighting requirements. The exclusive DOWNLIGHT option can be configured to illuminate the egress area in emergency mode. The EL Series exit sign ships completely assembled and ready to install out of the box, making it a maintenance friendly product ideally suited for food processing plants or any other wet or corrosive application.

  • PDF FILES

    Exit Lite Brochure
    Specifications
    Warranty

PRODUCT FEATURES

Exit Light
Ready to Install Out of the Box
Side Mounted, Water-Tight Push-to-Test Switch
Red Letters
Directional Indicators
Extended Life LED Lamps
Optional DOWNLIGHT Feature
Factory Installed, Stainless Steel Mounting Brackets
Standard Factory Installed 3' STOW Lead with Water-Tight Cord Grip Included
Optional Installed Dual Heads
Optional Remote Heads
Low Operating Cost

FIXTURE CONFIGURATOR

Use part number configurator to build your model

Consult factory for all available options and configurations.
Not all configurations of this fixture may be DLC qualified. Please consult the DLC Qualified Products list @ www.designlights.org to see if the version in which you are interested, is listed.

Series
EL = Exit Lite
 Operation
LED-EDL = Emergency Exit with Emergency Only Downlight
EM = Emergency Exit Only
 Voltage
12 = 120V
27 = 277
 Letter Color
R = Red
 Optional features
(Blank) = No Additional Features
DH = Dual Heads Installed (No Downlight)
RH2 = Remote Heads (No Downlight)
FINISH
